Plain Bearing

Plain Bearings

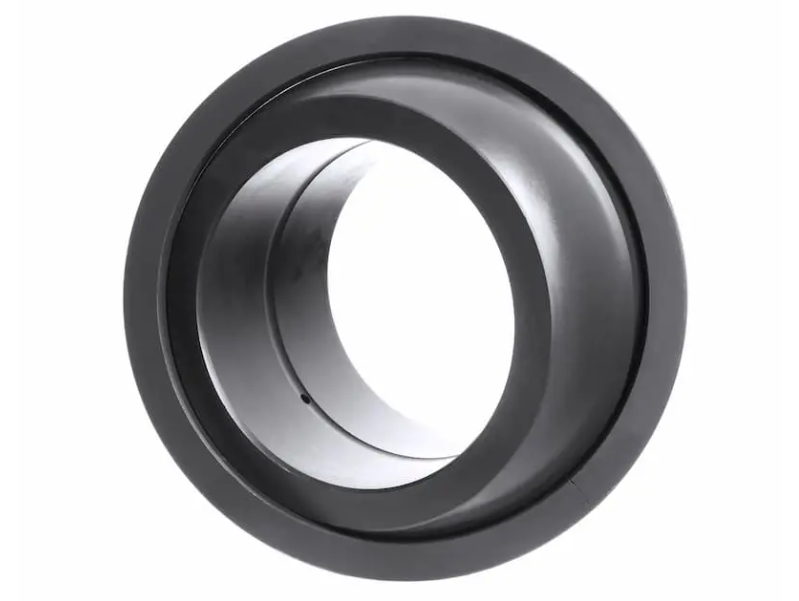

1. Spherical Plain Bearings

These bearings consist of an inner ring with a sphered convex outside diameter and an outer ring with a correspondingly sphered but concave inside surface.

1. Key Features: Designed to accommodate heavy radial loads and bi-directional axial loads simultaneously.
2. Applications: Hydraulic cylinder pivots, vehicle suspensions, and heavy-duty construction machinery.
3. Benefit: Their design is particularly effective for applications where alignment movements between the shaft and housing are required.

2. Bushings (Sleeve Bearings)

Bushings are the simplest form of plain bearings, consisting of a cylindrical sleeve that supports a rotating or sliding shaft.

1. Key Features: Available in various materials, including bronze, composite, and polymer.
2. Applications: Agricultural equipment, textile machinery, and food processing conveyors.
3. Benefit: They provide a cost-effective, space-saving solution for low-speed, high-load operations.

3. Rod Ends

Consisting of an eye-shaped head with an integral shank forming a housing and a standard spherical plain bearing, rod ends are vital for linkage applications.

1. Key Features: Available with internal or external threads (male or female) and in maintenance-free or relubrication-required versions.
2. Applications: Control rods, steering links, and mechanical linkages in textile and jute mills.
3. Benefit: They allow for easy mounting and facilitate angular misalignment in all directions.

4. Maintenance-Free Plain Bearings

These bearings feature specialized sliding layers (such as PTFE or graphite-embedded bronze) that eliminate the need for manual greasing.

1. Key Features: High chemical resistance and capable of operating in dry or submerged environments.
2. Applications: Pharmaceutical production lines and food-grade environments where contamination from lubricants must be avoided.
3. Benefit: Significantly reduces operational costs and maintenance downtime.
