Roller Bearings

Roller Bearings

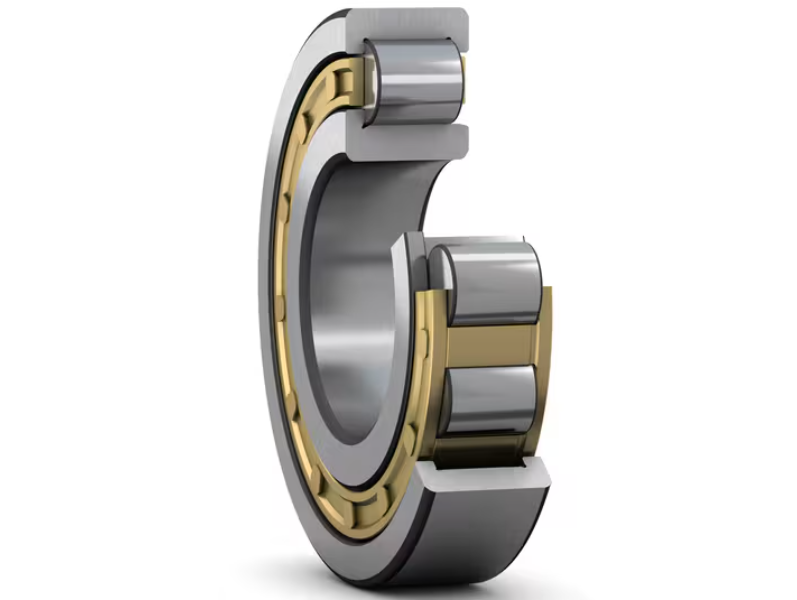

These bearings feature rollers that are cylindrical in shape, providing a large contact area with the rings.

1. Key Features: Designed to support very heavy radial loads at high speeds.
2. Applications: Industrial gearboxes, heavy-duty electric motors, and machine tool spindles.
3. Benefit: The separable design allows for easier mounting and dismounting during maintenance.

2. Tapered Roller Bearings

Tapered roller bearings have inner and outer ring raceways and rollers that are tapered. They are designed to handle combined loads (simultaneous radial and axial loading).

1. Key Features: High axial load-carrying capacity; the steeper the cup angle, the greater the axial load capacity.
2. Applications: Conveyor systems, mining equipment, and automotive axles.
3. Benefit: Capable of precise adjustment and high rigidity when mounted in pairs.

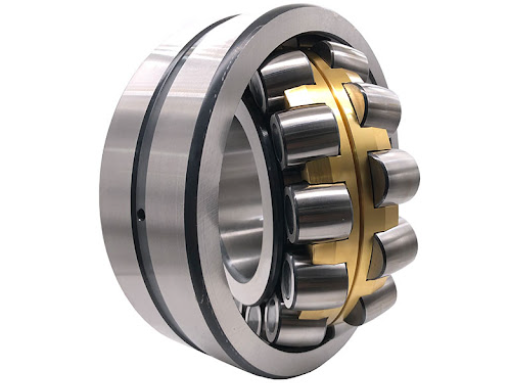

3. Spherical Roller Bearings

These bearings have two rows of barrel-shaped rollers and a common sphered outer ring raceway. They are inherently self-aligning.

1. Key Features: Exceptional load-carrying capacity; immune to shaft misalignment or deflection.
2. Applications: Heavy machinery in the Jute and Steel industries, paper mills, and crushers.
3. Benefit: Built for the toughest environments where heavy loads and misalignment are constant challenges.

4. Needle Roller Bearings

These use long, thin rollers (needles) and have a very low cross-section, making them ideal for applications with limited radial space.

1. Key Features: High radial load capacity despite their compact size.
2. Applications: Gear pumps, textile machinery, and automotive transmissions.
3. Benefit: Allows for significant weight and space savings in machine design.
